DOR 3rd Gen 3" Long Arm Suspension Kit 03-09 2500/3500

Dodge Off Road
Built to Order
(No reviews yet)
Current Stock:
Adding to cart… The item has been added

DOR's 3" suspension kit for your 3rd gen truck gives you the high quality parts to lift your truck the right way the first time, at a very affordable cost. Too often, Ram truck owners will buy a cheap kit because of the price and then spend the next couple of years replacing all of those cheap parts with good parts. We try to skip that step by giving you something that you can install and enjoy for the life of your truck. Our 3" kit includes:


3" progressive rate coil springs for a nice soft ride and plenty of travel.


DOR bent long arms, using 3/8" CNC cut steel bracket, 2" OD .250" wall DOM tube arms, and huge 1.25" Currie Johnny Joints.  This long arm kit gives you the most travel, the best ride, and will provide more tire clearance than stock to help fit bigger tires.


DOR adjustable track bar, made from 1.5" OD DOM tube with an FK uniball at the frame and a chromoly heim joint at the axle end, both using our custom machined 303 stainless misalignment spacers.

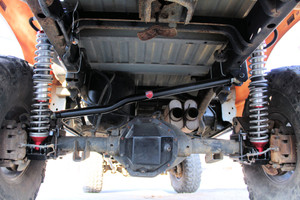

DOR 1" lift shackle for your rear suspension to give you a little extra height without the use of blocks or stiff mini-packs.




You can also add our huge 1.25" OD end links with 3/4" chromoly heims.  These are not necessary for a 3" lift height, but they are a great upgrade if your stock end links are worn out.



This setup will provide your 2003 - 2009 Ram 2500/3500 4x4 truck with 3" lift up front, 1" lift in the rear, a level stance, a much softer ride than stock, and room for 35" or 37" tires. We only use the highest quality parts, no coil spacers or drop brackets or blocks, so you can install this suspension and enjoy it.  Your truck will ride much better than it would with other suspensions, and you'll have a suspension that can handle whatever you want to throw at it.

We no longer include shocks with our suspension kits, you will need to source those on your own.


This suspension system is not a stocked item, we build them to order.  Depending on material on-hand, backorders, shipping delays, etc it could take weeks or months for your order to ship.  We do not guarantee when it will ship.


For a less expensive version of this suspension, we do offer a short arm kit.  Look up part number 3001 to view that product.

Short Description:
DOR 3" Long Arm Suspension 3G
